Product Description:

The leading wear -resistant Material Solution Provider

Production of all kinds of high, medium and low chromium grinding balls ,grinding segments liners and other medias required by mining metallurgy, thermal power energy , cement building materials, coal chemical industry , construction machinery and other industries.


Advanced Equipment

  • Iron Mold Coated Resin Sand Production line

  • Self developed Iron Mold Coated Resin Sand Production Line

  • Automatic Sand-molding Line

  • Constant Temperature pouring Process

  • Advanced Heat Treatment Process

  • Advanced Automatic Heat Treatment Production Line



Product Description :

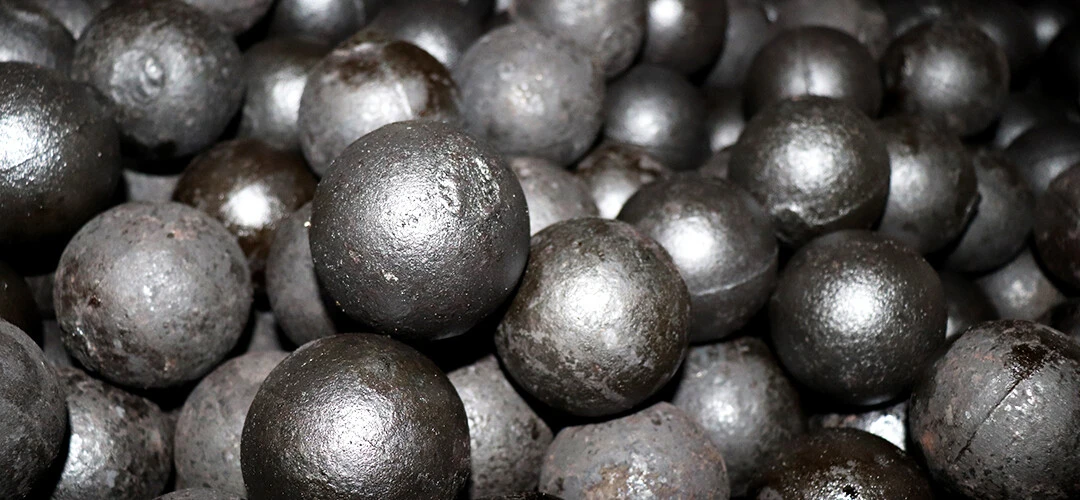

BLM-1    High Chrome Casting Balls

Product Description :DesignationChemical   Composition
CSiMnCrPSMoAl
High Chrome Casting ballsBLM-11.8-3.30.3-1.20.2-1.010.0-10.5≤0.06≤0.06**
CuNiNbTiZrVBMg
********
Special Hard High-Cr BallsCr12   /Cr15/Cr17     Cr20/Cr26/Cr30Any Request to adjust chemical composition or   add alloyed elements , the price would be agreed according to the   contract

Properties and Microstructure

NameDesignationAk(J/cm2)MicrostructureHRCTimes of Falling   Balls
High Chrome Casting   BallsBLM-1≥3.5M+C1+C264-66/60-66≥13000


BLM-2     High Carbon Multi-element alloyed Steel Balls

Product Description :DesignationChemical   Composition
CSiMnCrPSMoAl
High   Carbon Multi-element alloyed steel ballsBLM-21.2-2.50.4-1.20.2-1.24.0-7.0≤0.06≤0.06**
CuNiNbTiZrVBMg
********
    Any Request to adjust chemical composition or add alloyed elements , the   price would be agreed according to the contract


Properties and Microstructure

NameDesignationAk(J/cm2)MicrostructureHRCTimes of Falling   Balls
High Carbon Multi-element alloyed steel ballsBLM-2≥4.5M+C1+C260-64≥15000


Specification

Name （mm）Weight   of Each Ball (Kg)PCS/Ton
Φ300.1198403
Φ400.2753636
Φ500.5271898
Φ600.8551170
Φ701.380725
Φ802.109474
Φ902.945340
Φ1003.977251
Φ1105.346187
Φ1206.960144
Φ1257.780129
Φ1308.740114
